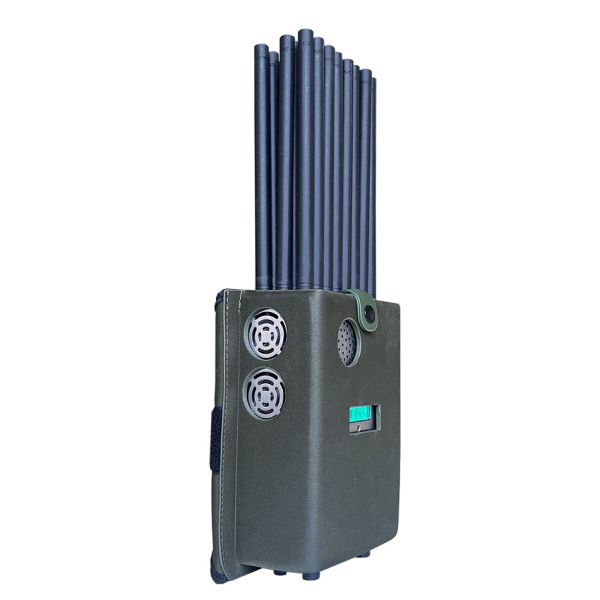

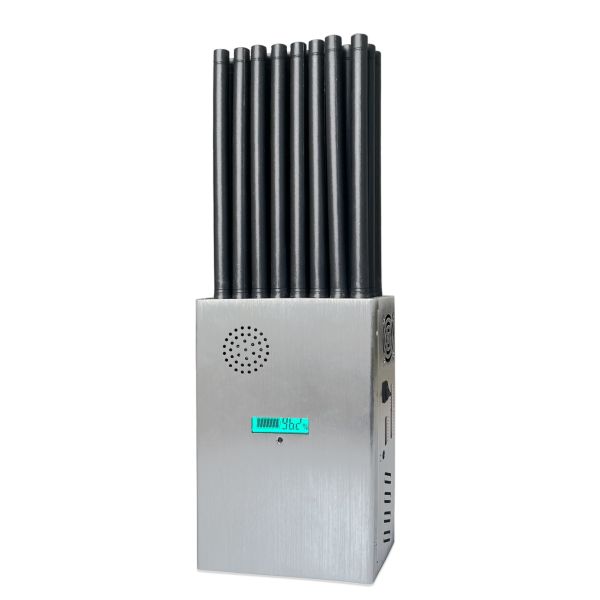

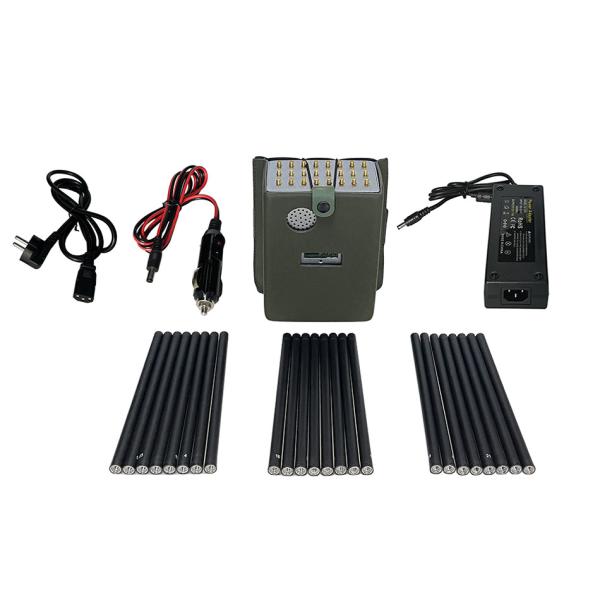

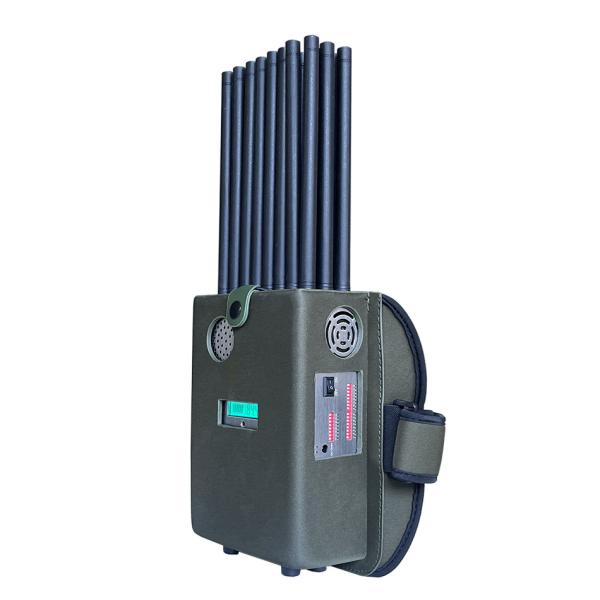

New design 24 antennans portable signal jammer blocking WIFI 6E and mobile phone 2G, 3G, 4G, 5G, GPS, WIFI, UHF, VHF, RF,LOJACK signals With new longer 2.5dbi gain omni antennas.
This 24 antennas multifunctional hand-held portable cell phone jammer is independently design and produced by JinYaTong Technology,Which blocks WIFI 6E and 2G, 3G, 4G, 5G, GPS, WIFI, UHF VHF, RF,LOJACK signals.
This cell phone jammer meets your blocking needs for the most common affected frequency types.And the handheld design makes it easy to carry.
Build-in 3 cooling fans and Bigger hot sink ensure the device to work safe and continuously
And new longer 2.5dbi gain omni antennas.
Specifications:
Cover interface standards:
JYT-2480
Band 1: LOJACK/VHF: 135-174MHz
Band 2: GPS L2-L5: 1170-1280MHz
Band 3: DCS/ PCS: 1805-1990MHz
Band 4: RF433: 433 MHz
Band 5: GPS L1: 1570-1615MHZ
Band 6: WIFI 2.4G: 2400-2485MHz
Band 7: 3G: 2110-2170MHz
Band 8: CDMA/GSM: 850-960MHz
Band 9: 4G1: 738-821MHz
Band 10: RF868: 868MHz
Band 11: RF315: 315MHz
Band 12: 3G1: 2010-2035MHz
Band 13: UHF: 400-470MHz
Band 14: 4G2: 725-790MHz
Band 15: 5G1: 3400-3600 MHz
Band 16: LORA: 900-930MHz
Band 17: GPS L3-L4: 1370-1390 MHz
Band 18: WIFI 5.2G/5.8G: 5125-5850 MHz
Band 19: 5G2: 3600-3800 MHz
Band 20: WIFI 6E: 5925-6450MHz
Band 21: 4G: 2620-2690 MHz
Band 22: 4G4: 2500-2620 MHz
Band 23: PCS: 1920-1990 MHz
Band 24: 4G3: 1417-1518 MHz
We can also customize the frequencies according to different requirements,Please feel free to contact us anytime!
Parameters:
Output Power: 24W
Power Supply: AC100-240V to DC12V 10A IN
Full set Weight: 3.4 KGS
Size: 198*132*68(not include Antennas)
Length of antenna : 172mm Gain:2.5dbi
Shielding Radius: 10-25meters at-70dBm (depends on the signal strength in the given area)
Battery: Built-in battery 7.4V/15000mAh
Working Time: More than 90 Minutes
Cooling System: High efficiency aluminum alloy radiator, Build-in 3x cooling fans
Feature and Advantages:
1. With longer 2.5dbi gain omni antennas,
2. With DIP Switch,Support the adjust or turn off of any single band without influencing the other bands's operation.
3. Can be used in car directly by using the car charger and AC charger comes with the order.
4. Inside 3 cooling fans and Bigger heatsink design ensure continuous operation of the device
5. Press the Power screen display to check the power percentage, Current, voltage, working current data easily.
6. Supports working while charging
7. External Omni-directional antennas. all the TX frequency covered down link only.
8. Small size design,easy to cary.
9. The shileding distance up to 25m, Depends on the signal strength in a given area.
10. Built-in rechargeable 7.4v 15000Mah battery, Working time more than 90 Minutes.
11. ODM orders are welcome.
12. Silkscreen OEM service can be offered.
Application:
1.It can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more;
2.For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.
Warranty: one year from delivery date.
For more details,please do not hesitate to send us an enquiry.
|
|
